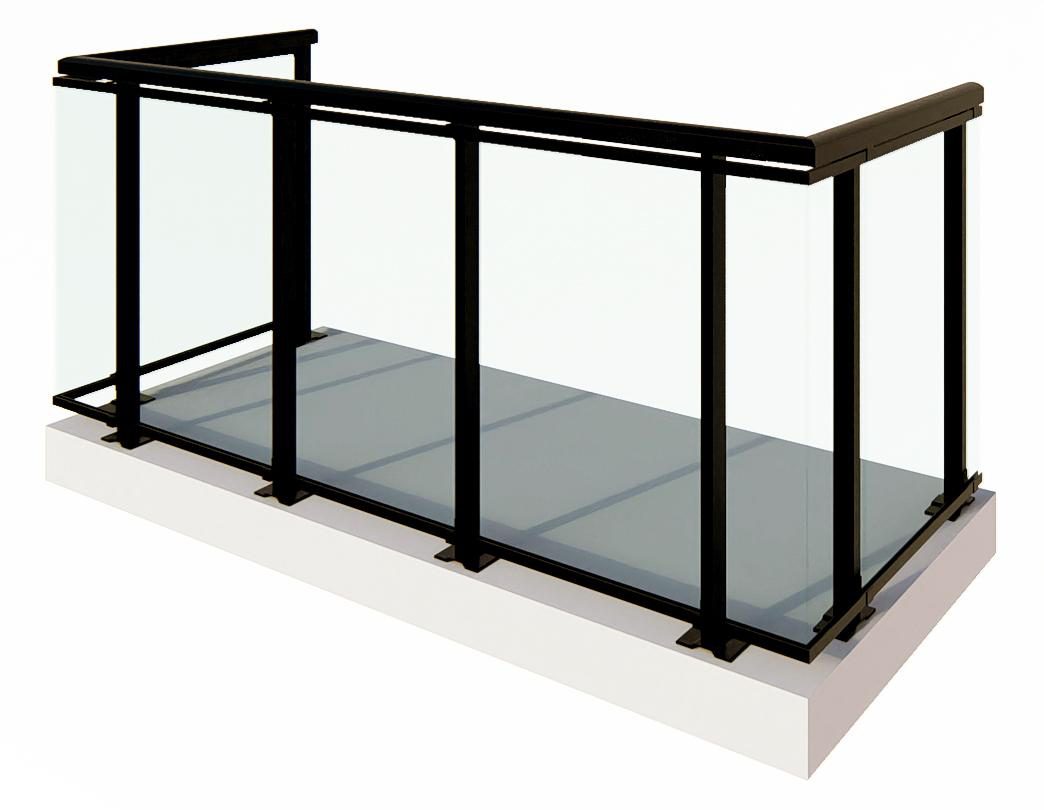

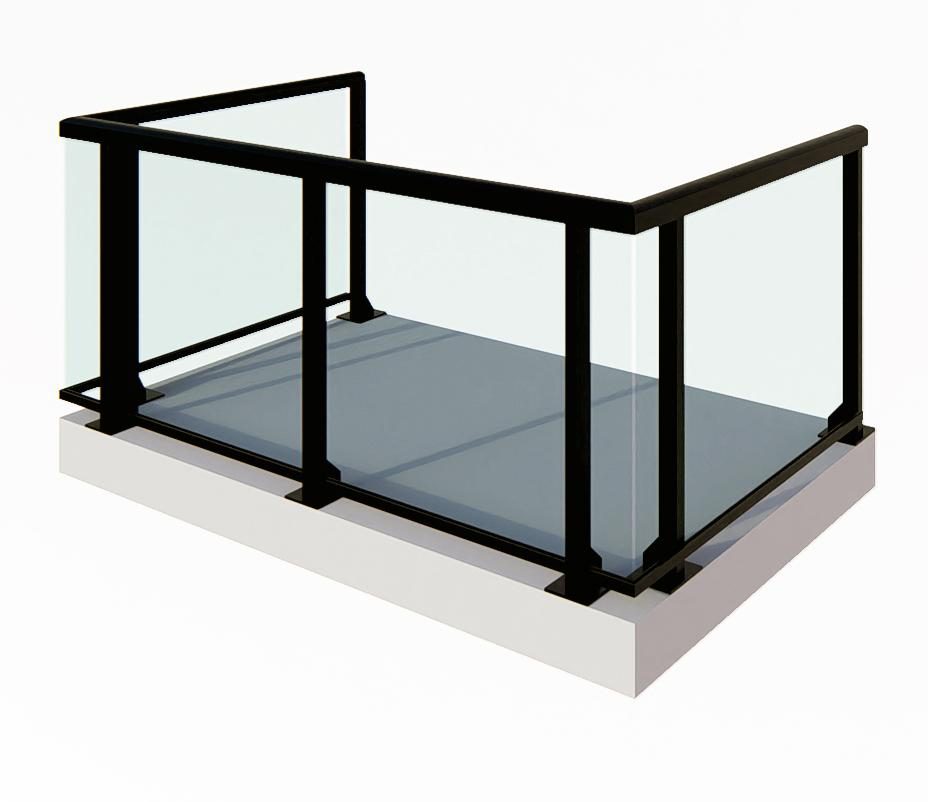

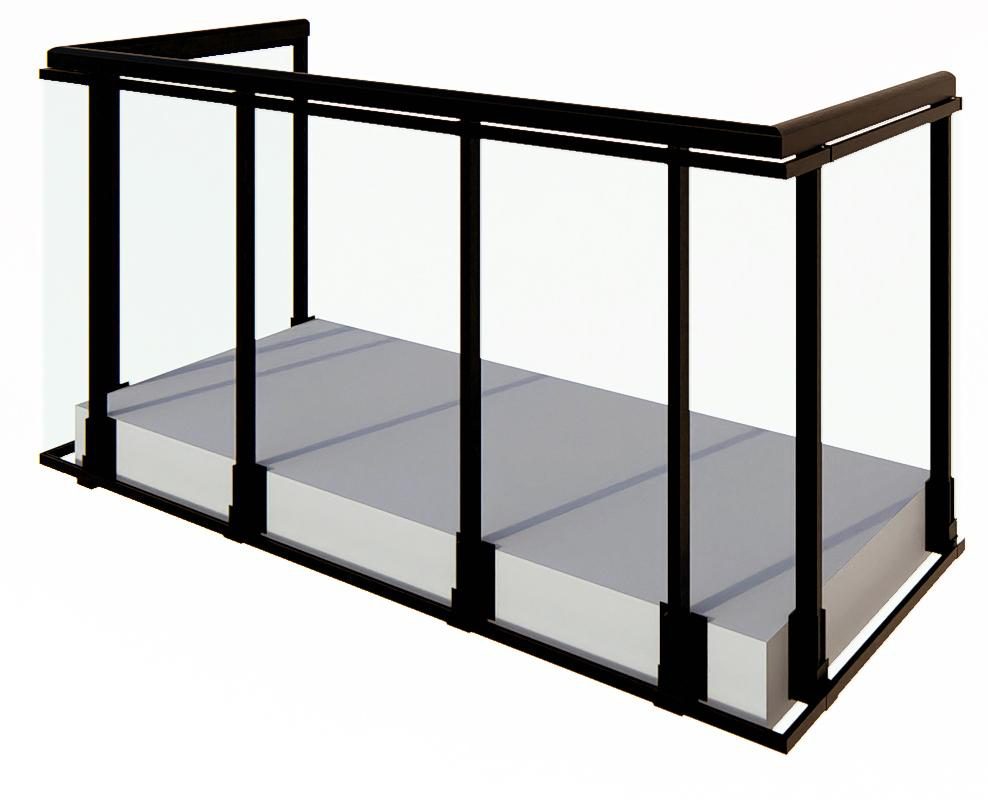

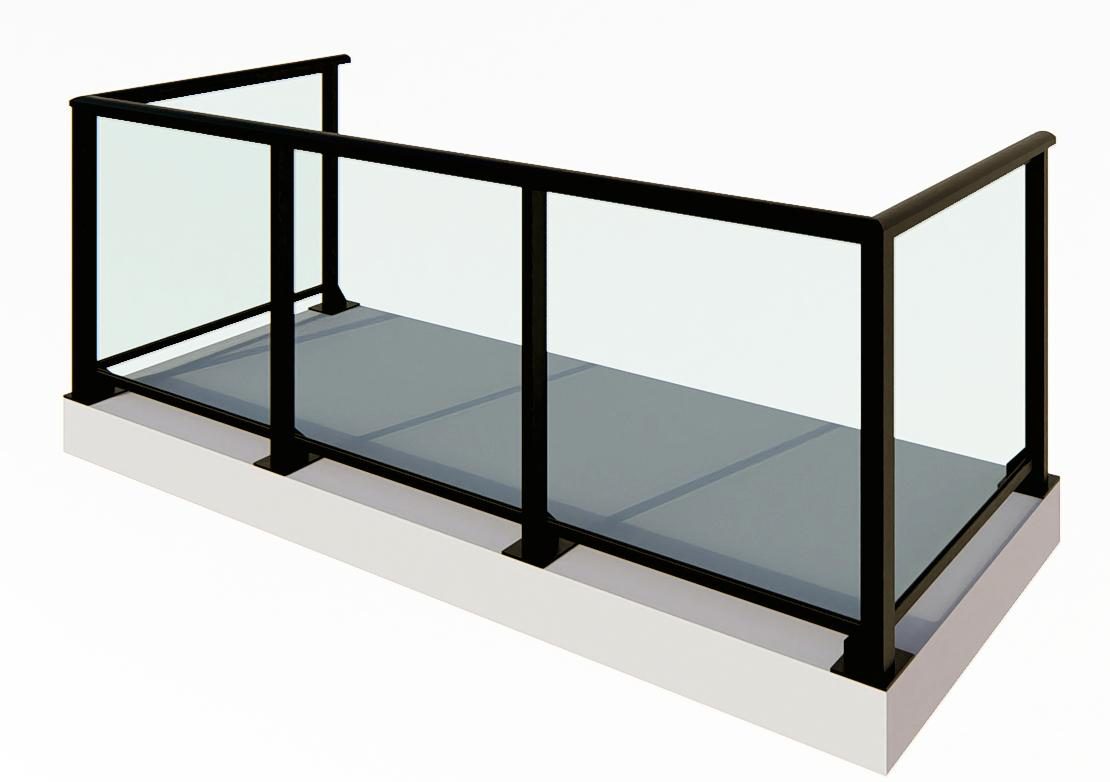

RM-EDGE™
Welded aluminum + glass
Shop-welded structural frames with laminated glass infill.
4 systems
View
Architectural guard systems · Ontario
Confidence you can lean on.
Twelve engineered aluminum and glass guard systems for balconies, terraces and façades, from welded picket guards to structural 6061-T6 assemblies for high-rise slab edges. Designed, fabricated and tested in Etobicoke, Ontario.
The range
Four families, organized by how the system is built.
Every Railing Masters system is defined by three decisions: how it is fabricated, how it mounts to the structure, and what fills the guard. The families are grouped by fabrication, because that is the decision that sets structural capacity.

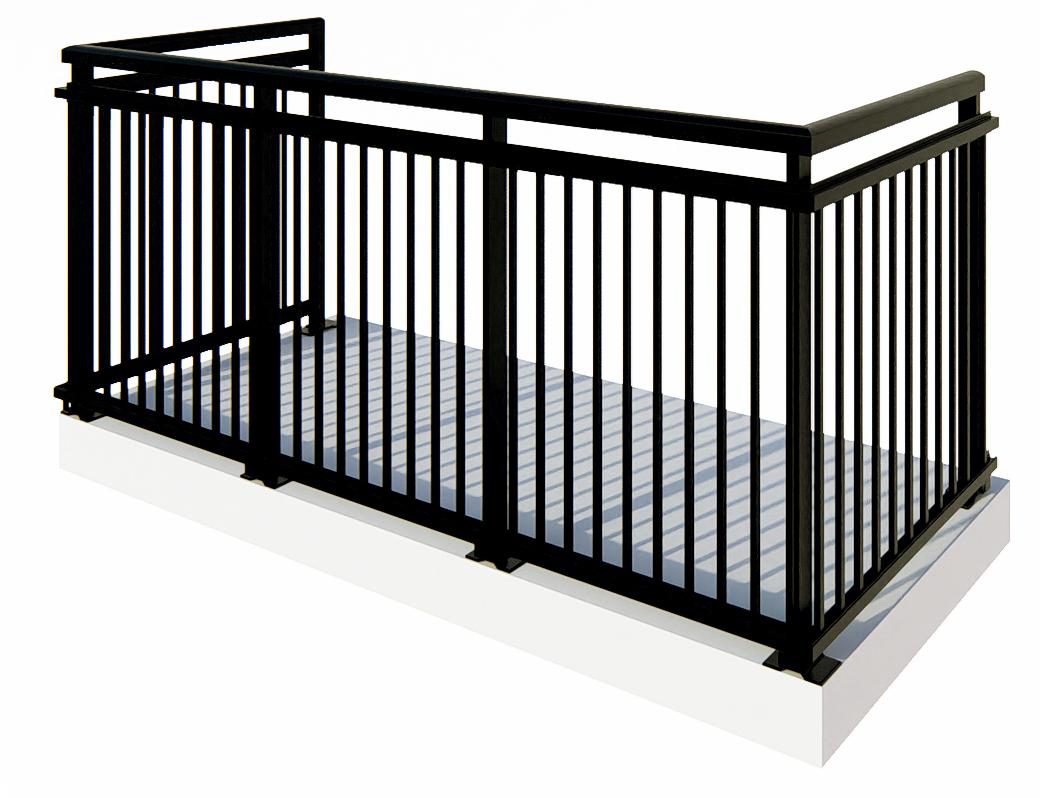

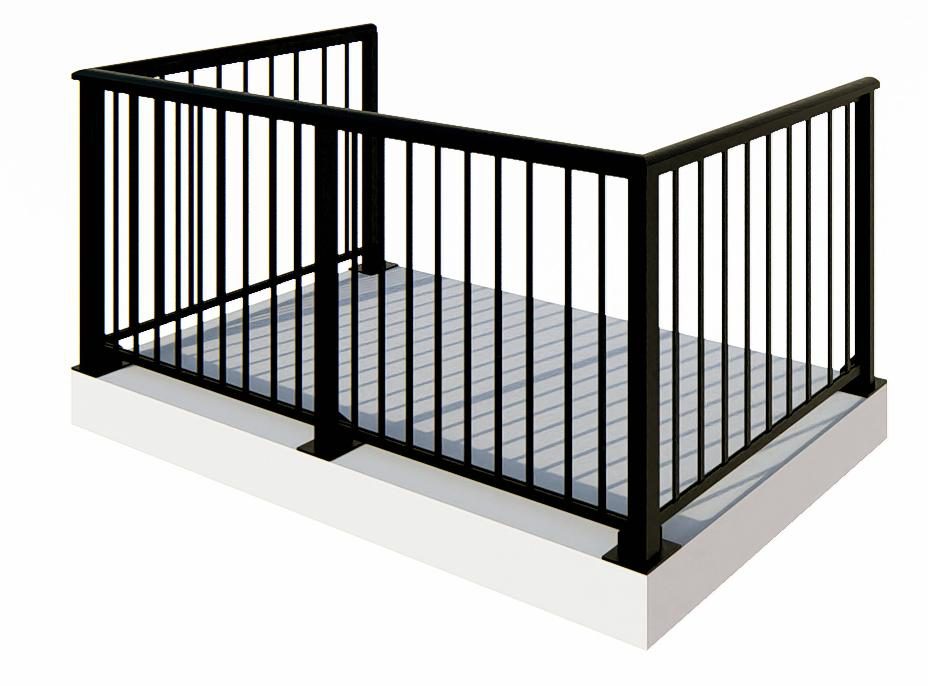

RM-VERT™
Welded aluminum picket
Shop-welded picket guards. Durable, low maintenance, spaced to code.
2 systems
View

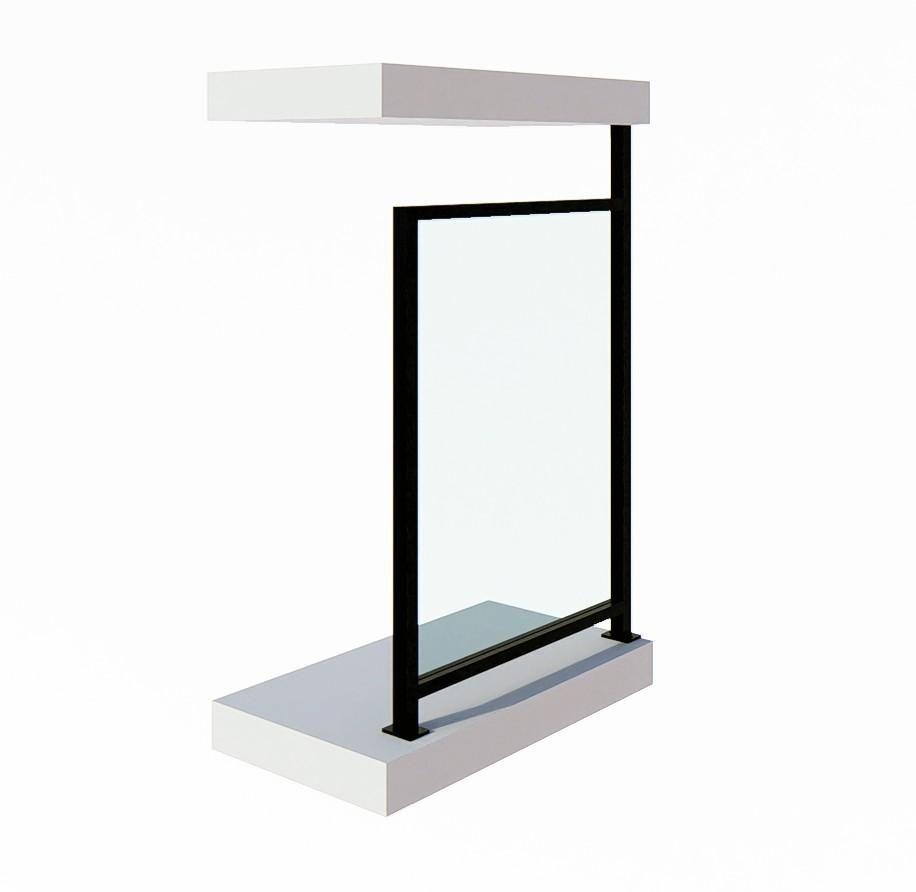

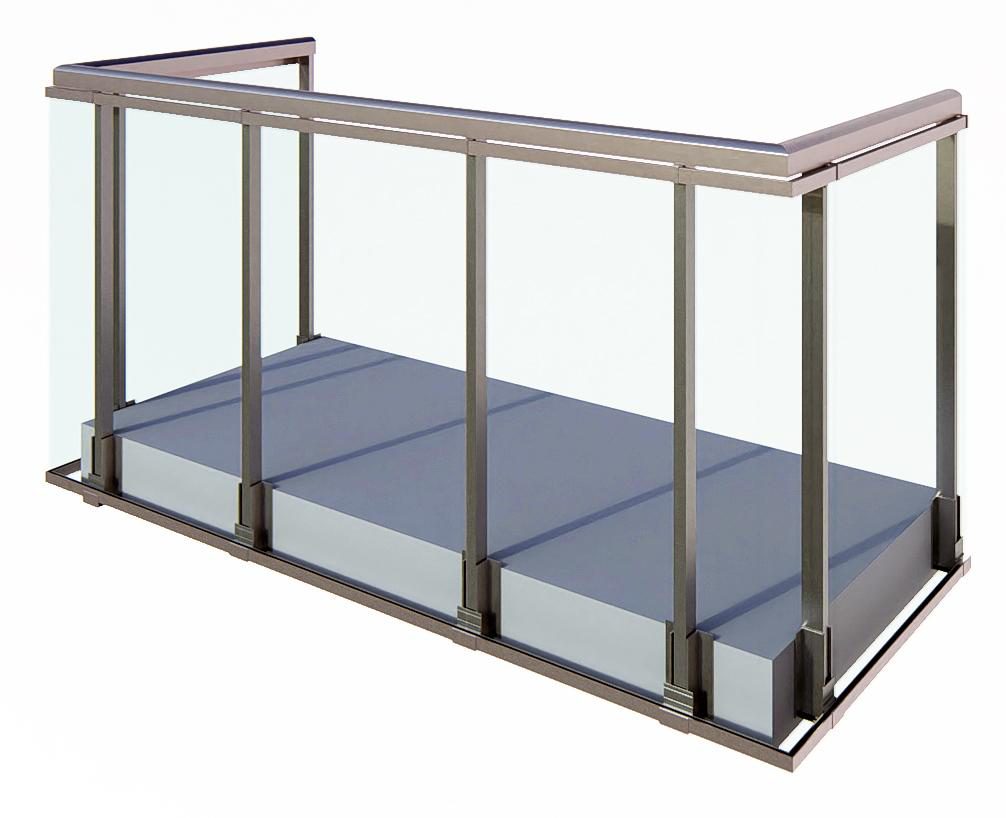

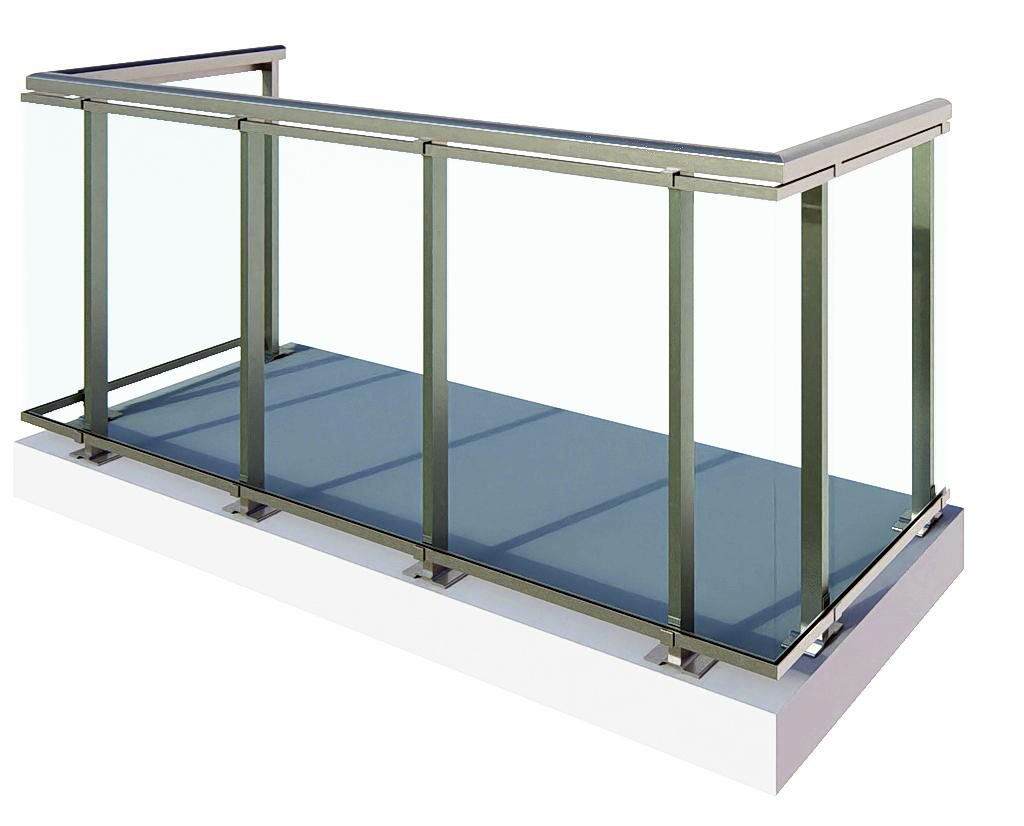

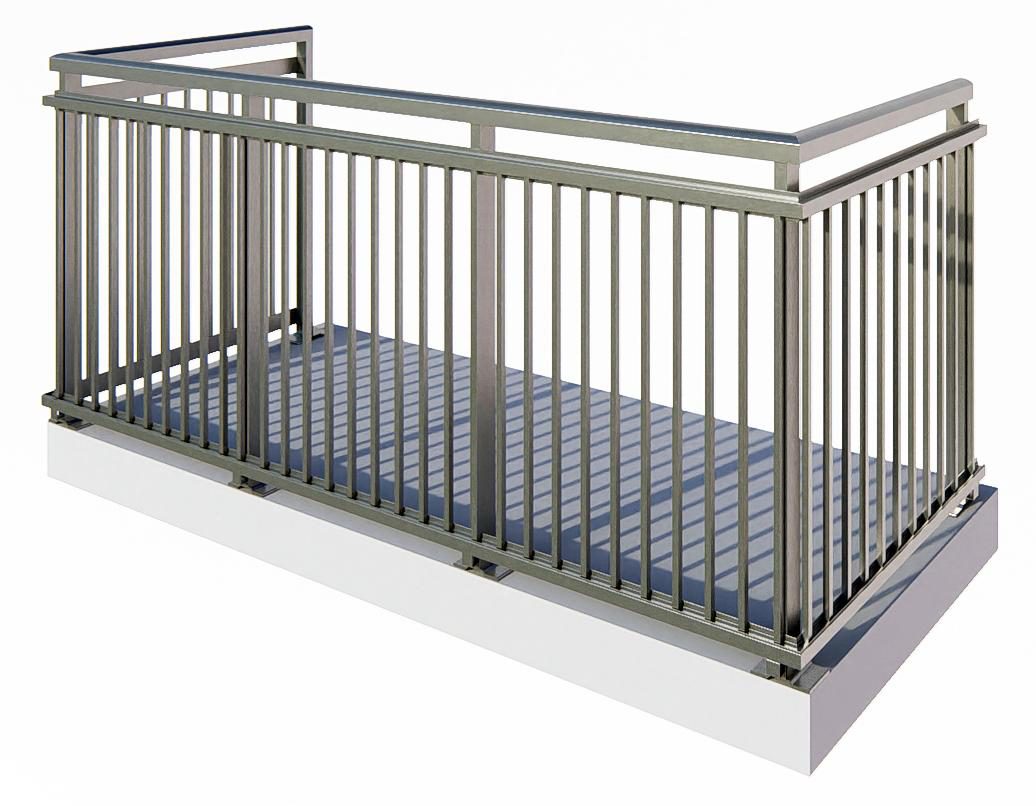

RM-PRO™
Mechanically fastened structural
Built entirely from 6061-T6 and bolted rather than welded, so the alloy keeps its full strength.
4 systems
View

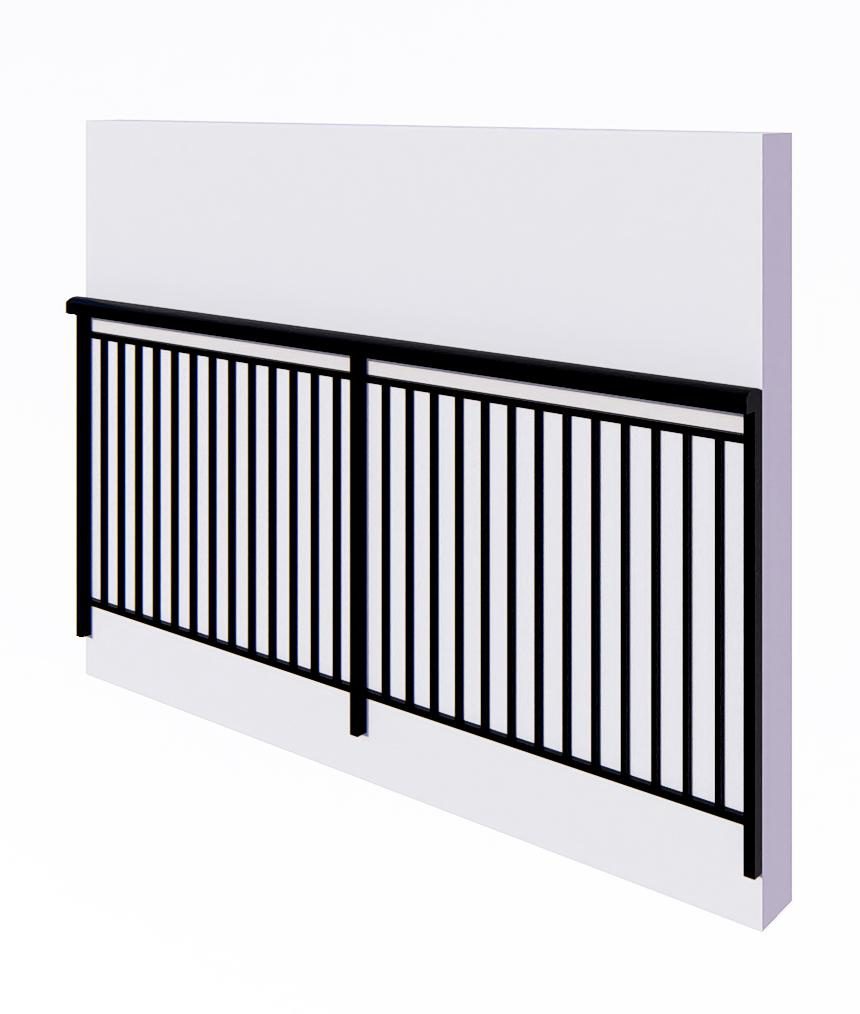

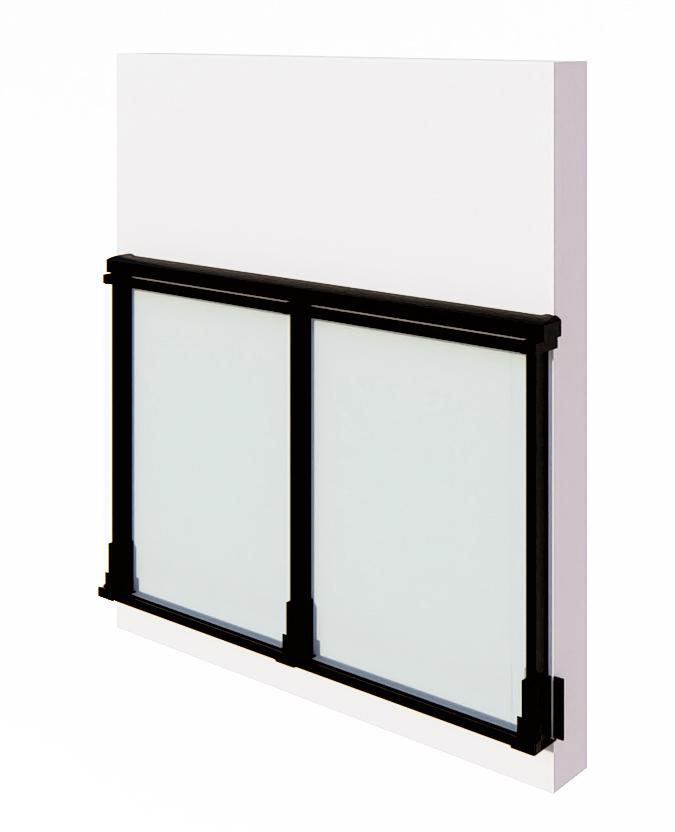

RM-JULIET™

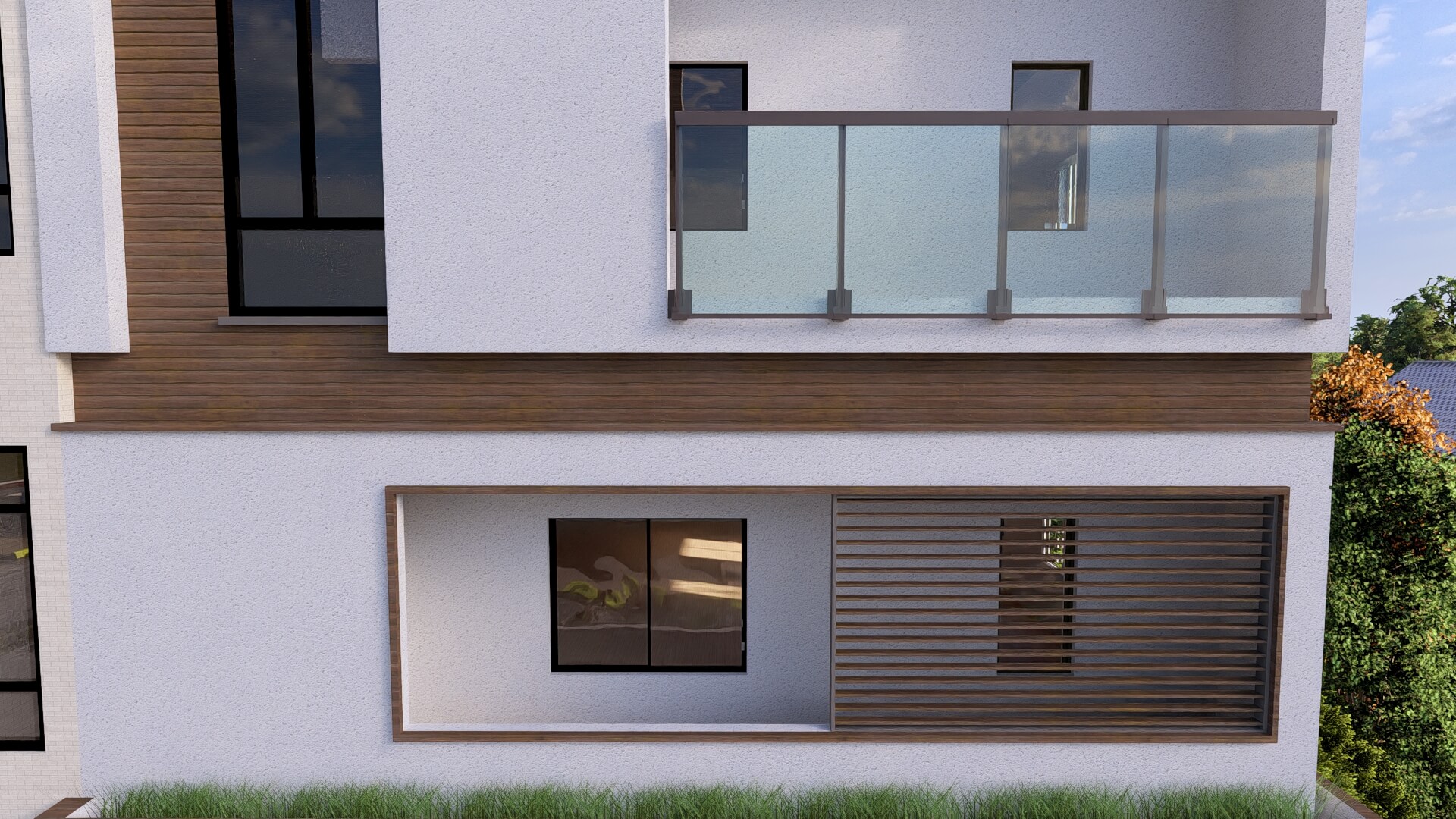

Face-mounted Juliet guards
Guards for windows and doors where there is no balcony.
2 systems
View
How to choose
Three decisions narrow twelve systems to one.
01
Mounting condition
Top-mounted or face-mounted. Usually settled by the slab detail and the waterproofing strategy before anything else. Face-mounting keeps the full balcony width and moves anchor penetrations off the walking surface.
02
Infill
Glass or picket. Glass keeps the view and falls under OBC SB-13. Picket takes more abuse, costs less, and limits openings to a 100 mm sphere.
03
Fabrication
Shop-welded or mechanically fastened. Welding makes the panel one continuous frame. Bolting avoids weld heat-affected zones, so the 6061-T6 keeps its full strength.
Start here
For architects, contractors, developers and homeowners.
Architects & specifiers
Filter the range by mounting, infill and fabrication, then open the spec sheet for materials, anchorage, code clauses and finishes.
Open the system finderContractors & installers
Stamped detail packages with elevations, sections, connection details and a full materials list, plus the fastener schedule for every component.
Get the drawing packagesDevelopers
Independent field load test results, OBC and CSA compliance, and the P.Eng-stamped review behind every system in the range.
See the test dataHomeowners
The systems suited to houses and low-rise buildings, in plain terms: what each one looks like, what it is made of, and how it attaches to the building.
Browse residential systems
Independent verification
Tested well past the code minimum.
Field load testing by JRAMCO Inc., 11 November 2025. Every load case passed, with measured deflections a fraction of the allowable limit.
2.1×
Intermediate post
2.1 kN applied · 1 kN required
2.1 kN applied · 1 kN required
1.8×
End post
1.78 kN applied · 1 kN required
1.78 kN applied · 1 kN required
2.0×
Top rail, mid-span
1.96 kN applied · 1 kN required
1.96 kN applied · 1 kN required
1.8×
Glass infill panel
0.9 kN applied · 0.5 kN required
0.9 kN applied · 0.5 kN required
Engineering & test data
Report RT25-330-1111-01 · P.Eng-stamped drawing packages available
Process
How a project moves through the shop.
01
Review requirements
We review the project scope, the system type and the code requirements against the architect's intent, and confirm mounting, infill, guard height and the governing clauses before anything is drawn.
02
Prepare documentation
We prepare the stamped drawings for review and permitting: elevations, sections, materials lists and anchorage details.
03
Engineering & testing
Any project-specific engineering and testing is completed. Every system is already backed by independent field load testing and a P.Eng-stamped review.
04
Final approval
Approved documentation is issued for construction and field coordination begins. Fabrication in the shop follows the approved set.
Specify with confidence
Send us the elevation. We'll send back the system.
Tell us the mounting condition, guard height and code jurisdiction. We'll come back with the recommended system, a stamped detail set and a materials list you can put straight into the spec.
